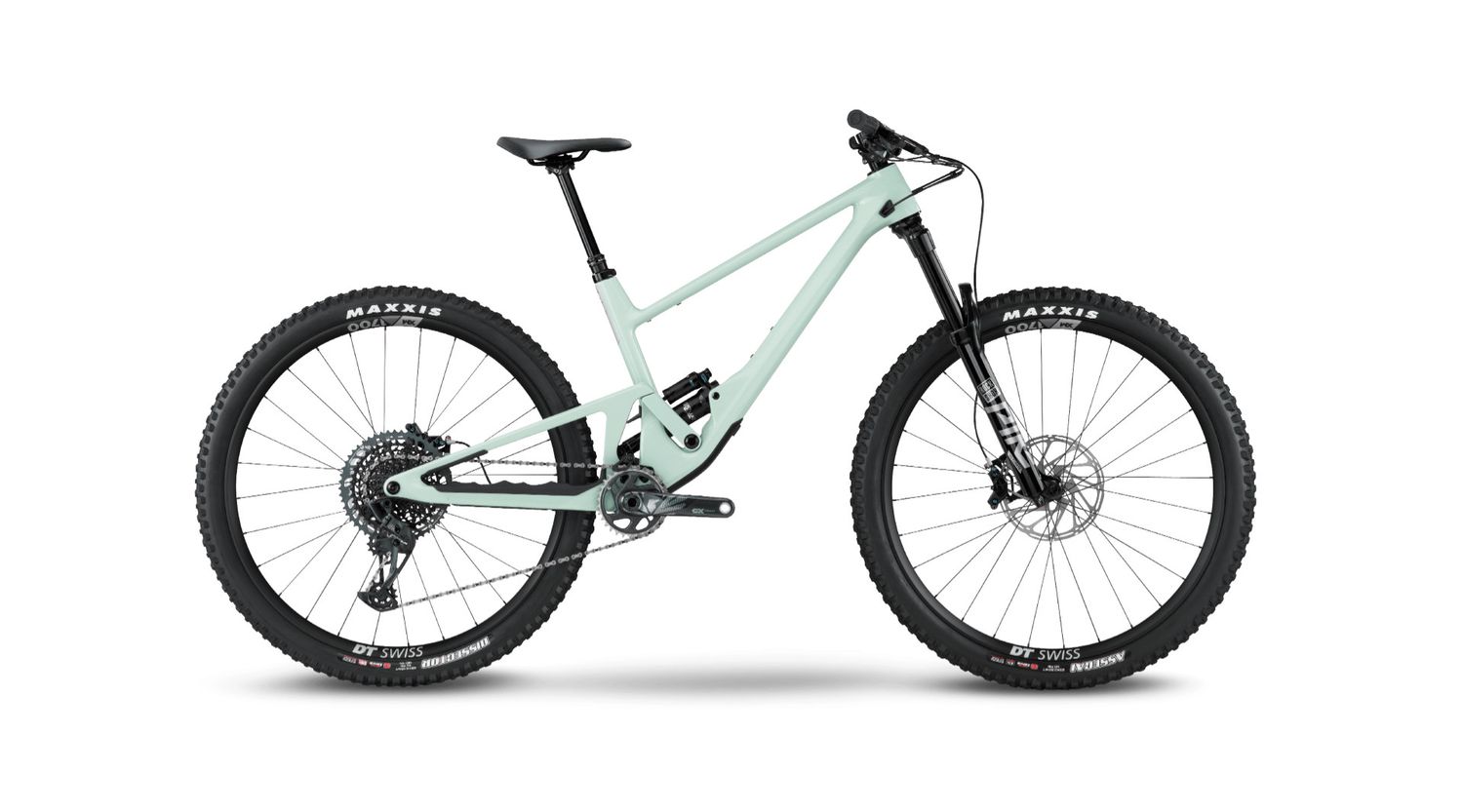

The 4060 ST GX is ready to take on anything – and have a whole heap of fun along the way. A lightweight full-carbon frame equipped with premium suspension gives a wicked fast ride and helps take you to places other trail bikes fear to go. With a no-compromise build kit that majors on performance, this is a bike that comes dressed to impress and ready to rock.
Frame:
SCOR 4060 Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Stash Box | Boost 148 | SRAM UDH | Lower ISCG 05 Mount / Chainguide
Fork:
RockShox Lyrik Ultimate RC2 | 150mm Travel | 44mm Rake
Front Suspension:
RockShox Lyrik Ultimate RC2 | 150mm Travel | 44mm Rake}
Rear Suspension:
RockShox Super Deluxe Ultimate RC2T Hydraulic Bottom Out | 205 x 57.5mm Trunnion
Remote Lockout:
Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle
Handlebar:
SCOR Carbon Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 7.5° Backsweep
Grips:
Burgtec Bartender Pro
Seatpost:
Bikeyoke Divine | S 125mm | M 160mm | L / XL 185mm Travel | Triggy Alpha lever
Saddle:
WTB Silverado Medium Titanium
Crankset:
SRAM GX Eagle Carbon Lunar | 170mm Length
Chainrings:
32T
Power Meter:
Cassette:
SRAM GX XG-1275 Eagle
Cassette Size:
10-52T
Chain:
SRAM GX Eagle
Front Derailleur:
Rear Derailleur:
SRAM GX Eagle
Shifters:
SRAM GX Eagle Trigger
Gears:
1 x 12
Bottom Bracket:
DUB Interface
Brake Levers / Calipers:
SRAM Code RSC
Rotors:
SRAM Centerline | 6-Bolt
Rotor Size (F/R):
200mm
Rims:
DT Swiss XM 1700 SPLINE | 30mm Internal Width | Tubeless ready
Hubs (F/R):
DT Swiss 350 | Ratchet SL Freehub | Straightpull Spoke Interface | Boost spacing
Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxTerra Exo TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra Exo+ TR (R)
